The Harvey GYRO AIR G-700 Dust Processor uses revolutionary Axial Centrifugation Technology (GYRO AIR®) that spins the air/dust stream up to 4,000 RPM, generating centrifugal force over 100 times gravity. This separates 99.9% of dust particles before they reach the filters, solving the traditional contradiction between dusty airflow and filtration. The result is consistent airflow, minimal filter clogging, and emission cleanliness of 0.05 mg/m³ (50% better than European standards).

The GYRO AIR G-700 Dust Processor operates at an incredibly low 61–72 dBA depending on speed setting, comparable to the volume of normal conversation. The aerodynamic optimization and enclosed housing contribute to this quiet operation.

Yes, the GYRO AIR G-700 Dust Processor is designed to collect dust from one or two machines simultaneously. This can be accomplished by connecting to multiple machines using blast gates to control which branch is active. The included Y-adapter and dual 4-inch inlet ports facilitate this setup.

Yes, the GYRO AIR G-700 Dust Processor is powered by an industrial-grade TEFC induction motor and INOVANCE MD200 Variable Frequency Drive rated for 24/7 applications, making it suitable for both hobbyist and professional workshop environments.

The GYRO AIR G-700 Dust Processor requires 220VAC, single-phase, 50/60Hz power with a minimum 20A circuit breaker. The machine comes with 1.8 meters of cable with a plug. Extension cords are not recommended, but if necessary, use minimum 2.5mm² (14 AWG) gauge wire with maximum 50 ft length.

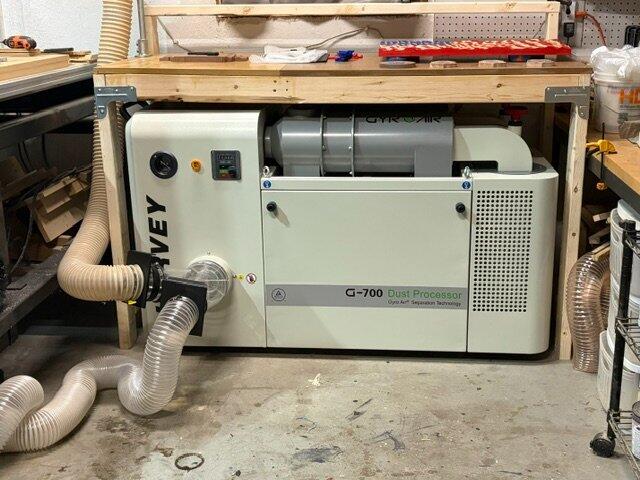

Position the machine at least 0.5 meter (18 inches) away from walls to ensure proper motor heat dissipation. The compact enclosed design allows it to fit under most workbenches.

The GYRO AIR G-700 Dust Processor accepts 2 inch, 4 inch, and 6 inch hoses. Connect 6 inch hoses directly to the main unit. For 4 inch and 2 inch hoses, install the included dust extractor adaptor first.

The GYRO AIR G-700 Dust Processor features variable speed control. Turn the knob on the control panel to adjust the frequency from 40Hz to 75Hz. Lower frequencies provide less suction for lighter dust collection needs, while higher frequencies deliver maximum airflow for demanding applications.

The intelligent Dust-Full Monitoring system uses a photoelectric sensor to detect when the 32-gallon dust bin reaches capacity. A buzzer will sound to alert you. Open the front door, release and slide out the dust bin to empty it. This should be done at minimum once per day.

The manometer monitors system performance. At initial setup, mark the normal reading at your operating frequency. If the reading increases, there may be a blockage in the ducting or extractor. If it decreases, check for loose hoses causing air leaks or splits/cracks in the hoses.

Perform basic filter cleaning weekly by turning the cleaning handles right and left for several turns. Every three weeks, perform a deep clean by connecting the inlet port to the cleaning port via the 100mm flexible hose, running the machine at 75Hz, and turning the handle for 5-10 seconds. Repeat for both cleaning ports.

Yes, Harvey offers DB-700 Dust Bin Disposable Liners specifically designed for the GYRO AIR G-700 Dust Processor. These make chip disposal cleaner and more convenient.

Replacement filters (DF-700 0.3 Micron Dust Filter Set) are available from Harvey. The filter is located inside the unit and can be accessed by opening the appropriate panel. Refer to the instruction manual for detailed replacement procedures.

If the motor overheats, reduce the load on the motor and ensure air circulation through the motor is not restricted. Clean the motor fan with compressed air to restore normal air circulation. Verify the machine is positioned at least 0.5 meter from walls for proper heat dissipation.

Traditional bag collectors struggle with filter clogging and poor air quality because all dust passes directly through the filters. The GYRO AIR G-700 Dust Processor separates 99.9% of dust before it reaches the filters using GYRO AIR technology, resulting in consistent airflow, less filter maintenance, and cleaner air emission of 0.05 mg/m³.

Cyclone collectors rely on gravity to separate dust, achieving only about 60% separation efficiency. Up to 40% of small particles still reach and clog the filters. The GYRO AIR G-700 Dust Processor uses centrifugal force over 100 times gravity to achieve 99.9% separation before the filters, dramatically reducing clogging and maintaining consistent suction.

Yes. Most traditional dust collectors are very loud due to air turbulence in cyclones and bag systems. The GYRO AIR G-700 Dust Processor operates at only 61-72 dBA depending on speed setting, which is comparable to normal conversation. This is achieved through aerodynamic optimization and the enclosed housing design.

The GYRO AIR G-700 Dust Processor achieves an air emission cleanliness level of 0.05 mg/m³, which is 50% better than the European Standard of 0.1 mg/m³. Traditional collectors often struggle to meet even basic air quality standards because their filters become clogged quickly.

Yes. The aerodynamically optimized design combined with GYRO AIR technology and VFD speed control allows the GYRO AIR G-700 Dust Processor to save up to 50% in energy costs compared to traditional dust collectors running at similar performance levels.

The GYRO AIR G-700 Dust Processor features a 32-gallon (120 liter) dust bin capacity with two internal bins. Unlike traditional collectors where you deal with messy bags, the GYRO AIR G-700 Dust Processor bins roll out easily through the front panel for clean emptying, and optional disposable liners are available.

The GYRO AIR G-700 Dust Processor is designed to collect dust from one or two machines simultaneously using the 6-inch main inlet or dual 4-inch adapter inlets with blast gates. This is comparable to most single-stage collectors but with far superior separation efficiency and air quality.

No. The GYRO AIR G-700 Dust Processor is designed only for wood chips and dust collection. Do NOT use it to collect liquids, poisonous gases, explosive materials, viscous substances, or any other potentially dangerous materials. Using it for unintended materials may cause fire, explosion, or damage to the machine.

Grounding is critical for two reasons: electrical safety and static electricity prevention. The machine must be grounded to reduce electric shock risk. Additionally, plastic dust hoses generate static electricity as dust passes through them, which can cause sparks and potentially fire or explosion. Ground all plastic dust lines by connecting the spiral copper or iron wire on the hose to the set screws on the dust port.

Always wear safety glasses or a face shield to protect against flying particles. Wear a NIOSH-approved respirator as wood dust may cause cancer, birth defects, or respiratory damage. Wear ear protection if noise seems excessive. Avoid loose clothing, gloves, neckties, or jewelry that could get caught in moving parts. Use non-slip footwear and tie back long hair.

Yes. Only operate the dust collector in locations that contain a fire suppression system or have a fire extinguisher nearby. Regularly empty collection bins to avoid fine dust buildup that increases fire risk. Keep the surrounding area clean of excessive dust buildup on lights, heaters, and electrical panels.

The GYRO AIR G-700 Dust Processor weighs 445 lbs net weight and 510 lbs gross weight with packaging. The machine includes built-in lifting eyes (eye bolts) for safe lifting with appropriate equipment. Heavy-duty casters allow for movement once installed. Use a stacker truck or forklift for initial positioning, and always have qualified personnel assist with moving.

The package includes: the main machine unit, one 100mm x 2m long flexible hose, dust extractor adaptor, handle, tool set, and wireless remote control. All accessories except the main unit are positioned inside the dust collection box - open the front door to retrieve them.

After unpacking: 1) Remove transportation screws from the bottom of the unit (4 hex head screws). 2) Turn the red handles to lower the support legs about 1 inch. 3) Use the four eyebolts to lift and remove from pallet. 4) Install the handle on the side. 5) Reinstall the dust bin. 6) Position at least 0.5m from walls. 7) Adjust support legs until they touch the ground. 8) Install the dust extractor adaptor and connect hoses.

No. Do not expose the machine to water or moisture and do not use it outdoors. The GYRO AIR G-700 Dust Processor is designed for indoor workshop use only. Using it outdoors or in wet conditions creates risk of electric shock and can damage electrical components.

Harvey provides a limited warranty from date of purchase covering defective parts, which will be repaired or replaced at no additional charge. The warranty does not cover normal wear and tear, consumable parts, abuse or misuse, lack of proper maintenance, use of non-genuine parts, unauthorized modifications, or damage from force majeure events.

Contact Harvey Industries International at 1-888-211-0397 or email info@harveywoodworking.com. You can also submit support tickets through their online portal at harveyindustriesintl.freshdesk.com/support/home. The Knowledge Base contains helpful articles and troubleshooting guides.

The name plate with the serial number is located on the side of the main base unit. Record this number for warranty registration and keep it handy when contacting customer service, as it will facilitate rapid and effective support.
