You didn’t start woodworking to wrestle with dust. You started to build, to create, to bring form and function out of raw material with your own hands. But somewhere along the way, the dream got buried under sawdust. Traditional dust collectors roared like jet engines, clogged at the worst times, and turned your creative space into a battlefield.
Filters would choke. Suction would fade. You’d find yourself sweeping, coughing, frustrated, and wondering why the very machine meant to support your work had become the thing you fought most.
The Harvey G-700 Pro was born from that frustration. We listened. We built. We were obsessed. This isn’t just another dust collector. It’s a system engineered from the inside out to give you back your time, your space, and your breath. By combining brute industrial strength with modern intelligence, the G-700 Pro delivers cleaner air, stronger suction, and intuitive control—all in one beautifully responsive unit. Every time you turn it on, it just works. And keeps working.
Patent Notice: This product is protected by one or more patents in certain jurisdictions.
Patented Gyro Air Technology
Rear-Mounted Blower Assembly
Single-Pass Channel Design
Smarter Control System

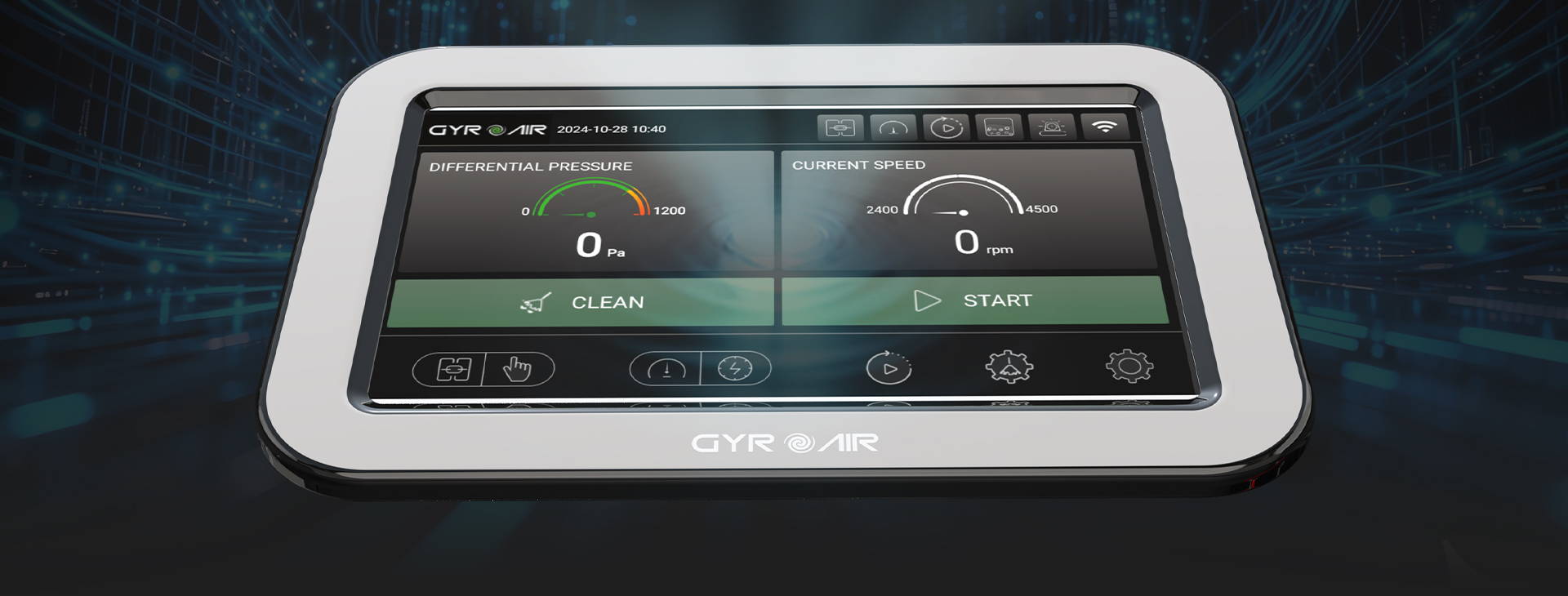

Intuitive Touchscreen Interface
High-Efficiency PMSM Motor
Smart Jet-Pulse Filter Cleaning
Wireless Remote Control (65 ft Range)
Low‑Noise Operation (60–71 dB(A))
Roll‑Out Dust Bin
Dust Level Detection

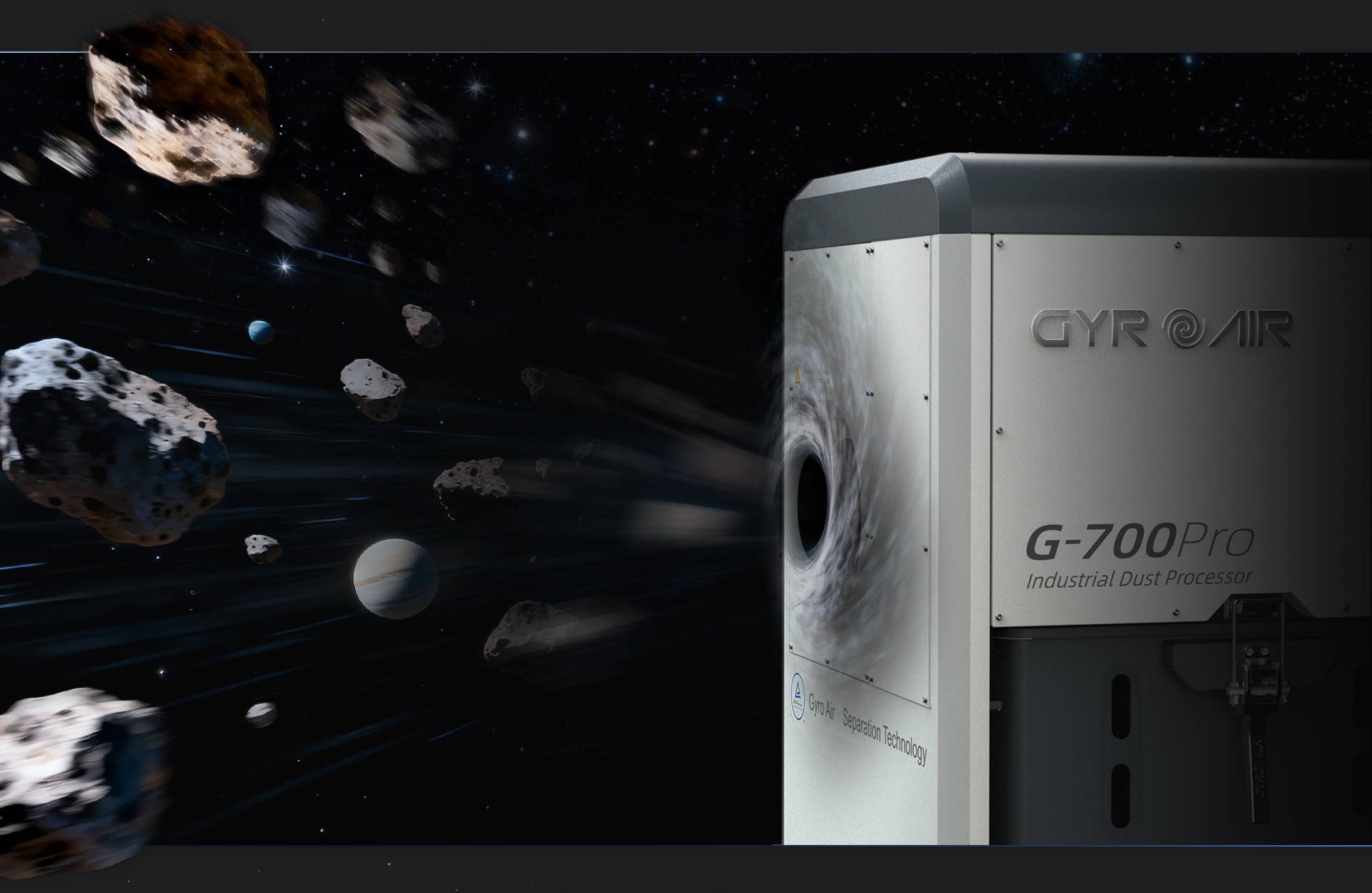

At the heart of the G-700 Pro is our patented Gyro Air Technology, a powerful system that separates out 99.7% of airborne dust before it ever reaches the filter. That’s not marketing—it’s a fundamental shift in how dust collection should work. No filter clogs. No sudden suction loss. No sweeping between every cut. The Rear-Mounted Blower Assembly and Single-Pass Channel Design maintain a strong negative-pressure system that captures fine dust before it ever has a chance to settle into your lungs—or on your tools!
This design isn’t just about cleaner air. It’s about preserving your workflow. Instead of stopping to shake out a filter or troubleshoot clogs, you stay focused on the project at hand. The dust simply vanishes, and the frustration goes with it.
Maximum Airflow:
1235 CFM
(2100 m³/h)
Maximum Static Pressure:
19¼ inches of water
(4800 Pa)
This isn’t theoretical suction. This is 1235 CFM (2100 m³/h) of real-world airflow with 19¼ inches of water (4800 Pa) of static pressure. It’s engineered to keep up with high-demand environments—multiple machines, long duct runs, fine dust, coarse debris. You won’t just feel the difference; you’ll see it every time your dust disappears before it even has a chance to settle.
It’s not about flashy specs. It’s about the kind of performance that makes you stop mid-project and smile because everything is running exactly how it should.
*Max. Air Flow @6 inch hose: 750 CFM (1275 m³/h)
Power
Speed
Dust Cleaning
Allowed While Running
Manual Dust
Clean

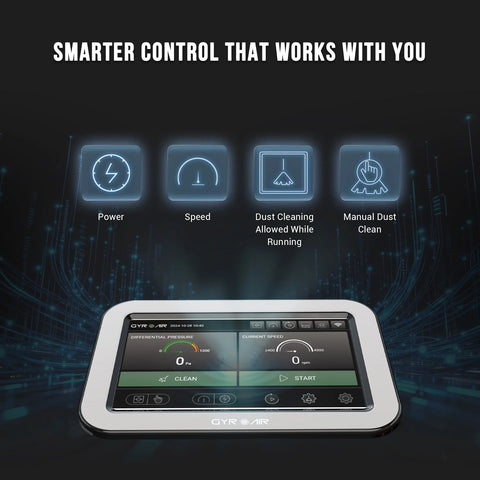

Every part of the G-700 Pro was designed to eliminate friction—including how you interact with it. The touchscreen interface is fast, intuitive, and feels more like a high-end tablet than an industrial control panel. You can adjust fan speed and power, monitor differential pressure, and check dust-bin levels with a simple swipe or tap. The machine responds instantly and intuitively.
No awkward menus. No outdated tech. Just fluid, responsive control that blends into your workflow so seamlessly, you’ll forget it’s even there.

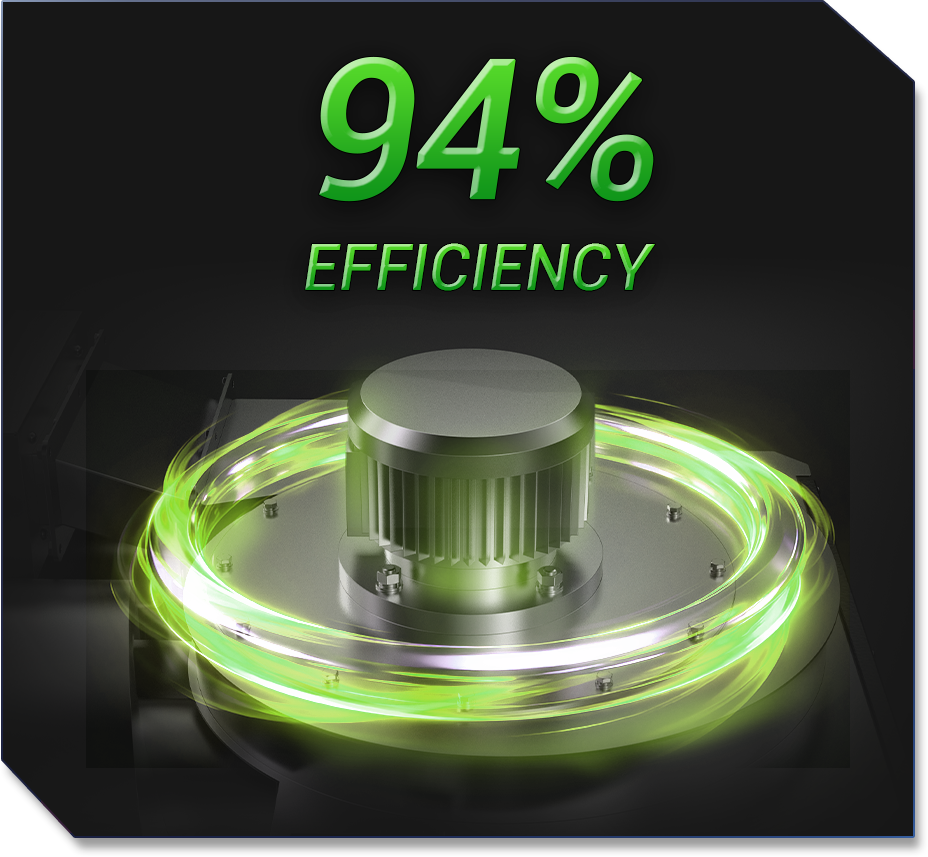

The G-700 Pro is driven by a 3HP (2.2kW) rare-earth Permanent-Magnet Synchronous Motor (PMSM) engineered for endurance and efficiency. With up to 94% energy conversion, it transforms nearly every watt into clean, continuous power—running cooler, stronger, and longer than conventional motors.
No overheating. No energy waste. No unnecessary noise. Just stable, high-output performance that never backs down—even in demanding, full-day use.

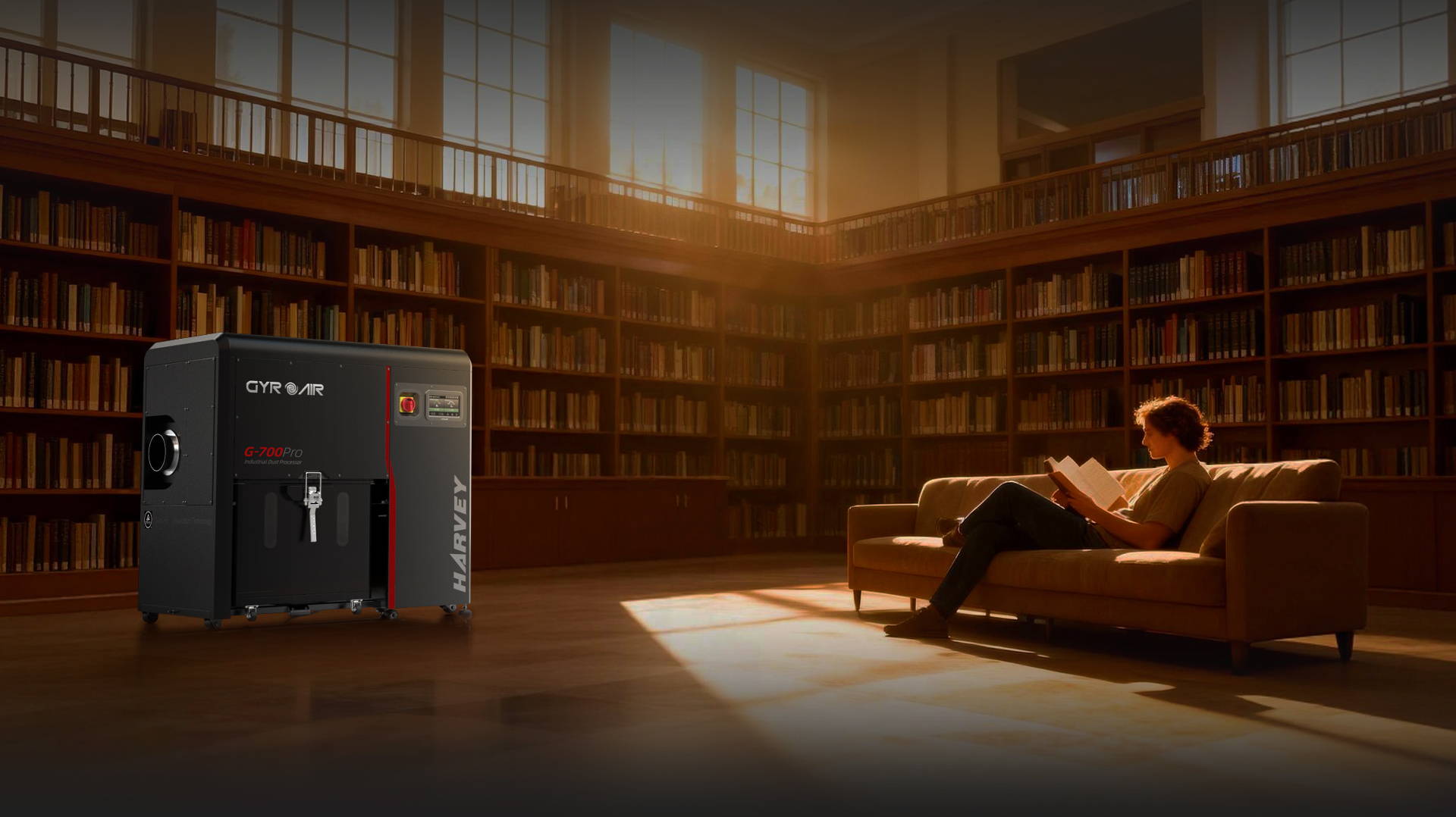

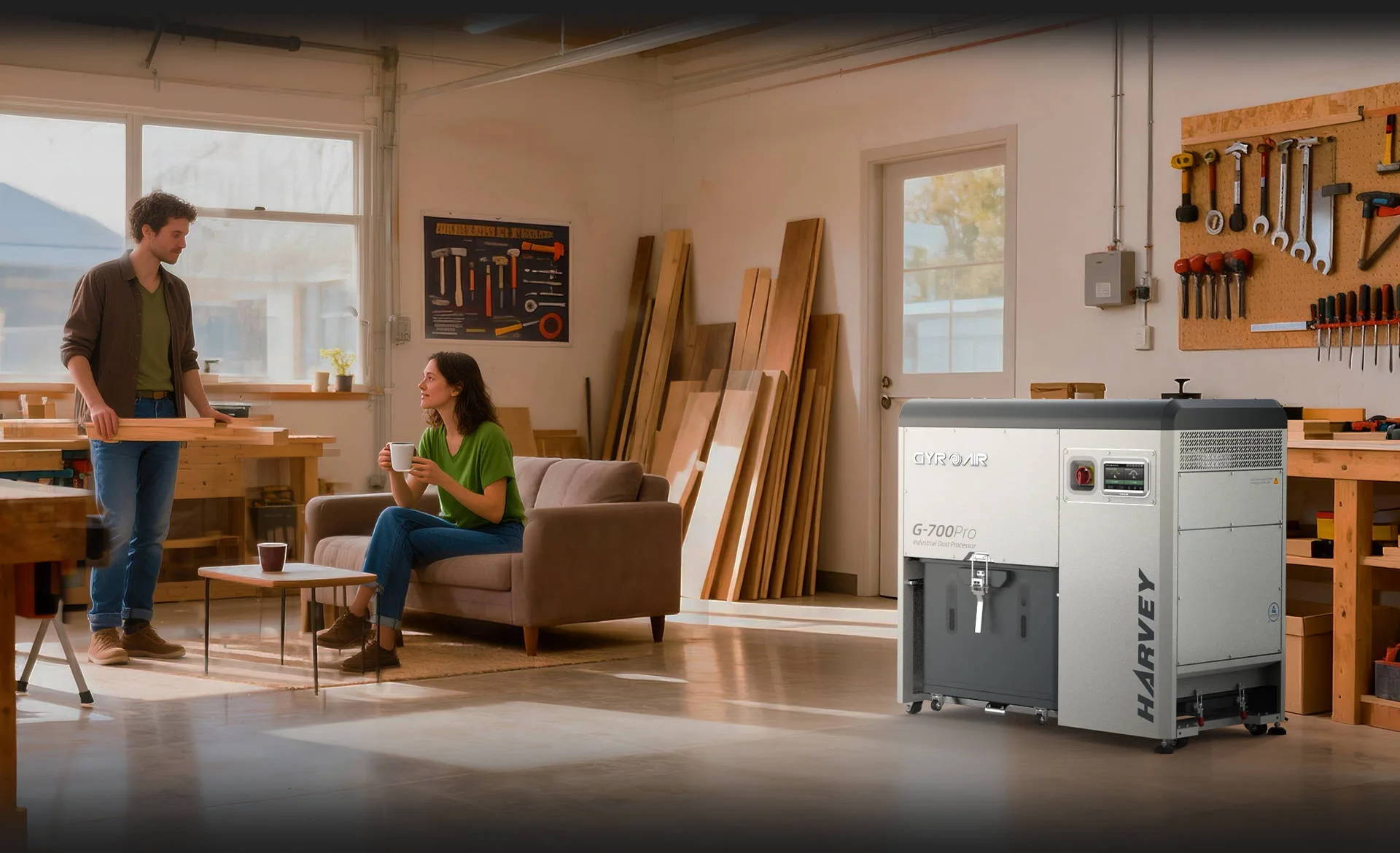

Thanks to its fully optimized overall structure and low-noise PMSM motor, the G-700 Pro operates between just 60–71 dB(A)—quiet enough to let you work in peace.
You can still talk. Still think. Still enjoy your shop without the machine overwhelming everything around it.
You don’t have time to stop and shake filters—and with the G-700 Pro, you don’t have to. The Smart Jet-Pulse Filter Cleaning system continuously monitors filter load and blasts away buildup when needed. No maintenance routine. No schedule to follow. Just a system that takes care of itself so you can stay immersed in your work.
It’s not just smart. It’s a system that respects your time.

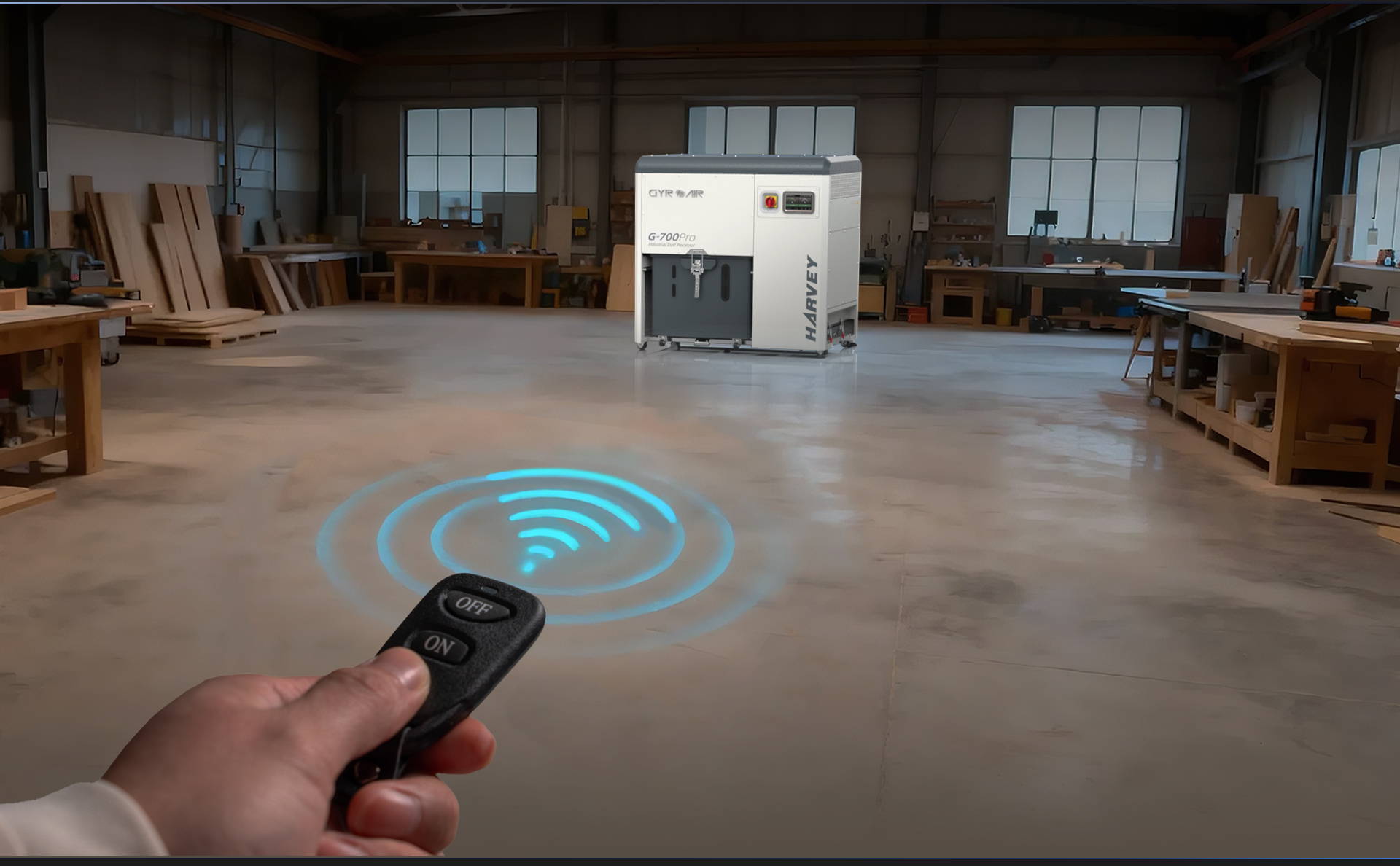

Whether you’re across the room or across the shop, you’re always in control. The included wireless remote works up to 65 ft (20 m) away, letting you start or stop the system without interrupting your momentum. This is true shop freedom—no wasted steps, no yelling over noise, just focus where you need it.

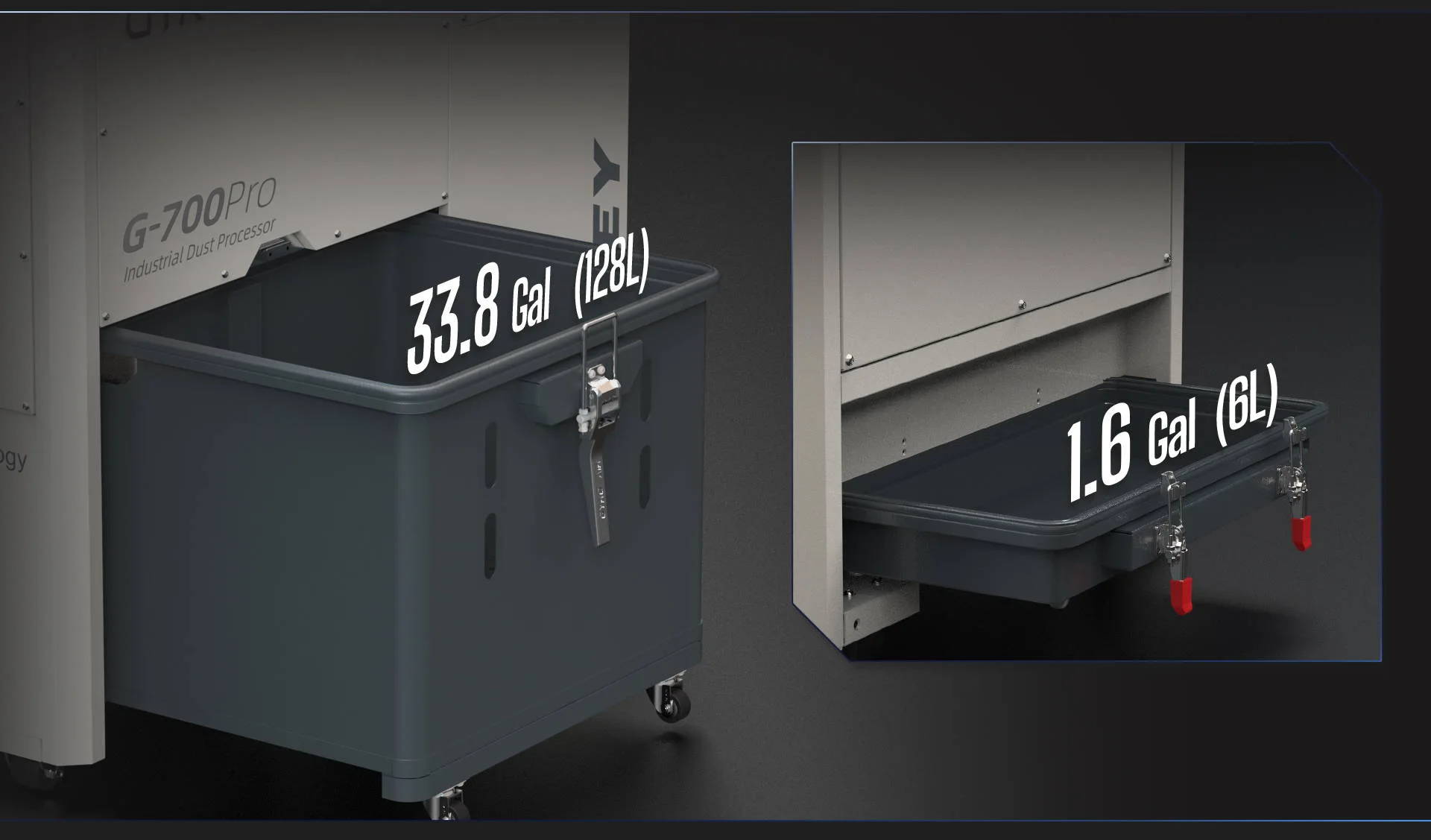

Emptying the dust bin should be simple. So we made it simple. The G-700 Pro’s 32-gallon bin rolls out effortlessly, and a built-in sensor tells you exactly when it’s full. No guesswork. No surprise messes. No stopping mid-cut to check.
Less interruption. More creation.
The G-700 Pro isn’t just about airflow or noise ratings or filter stats. It’s about solving the real problems that waste your energy. The kind of problems that slowly steal your passion for the work you love.
This machine doesn’t just manage dust—
it restores your rhythm.
Patent Notice: This product is protected by one or more patents in certain jurisdictions.
"Some images on this page are computer-generated representations of the product and may differ from the actual product. Colors, textures, and other details may not be accurately represented in the images. Please refer to the product description and specifications for more information."

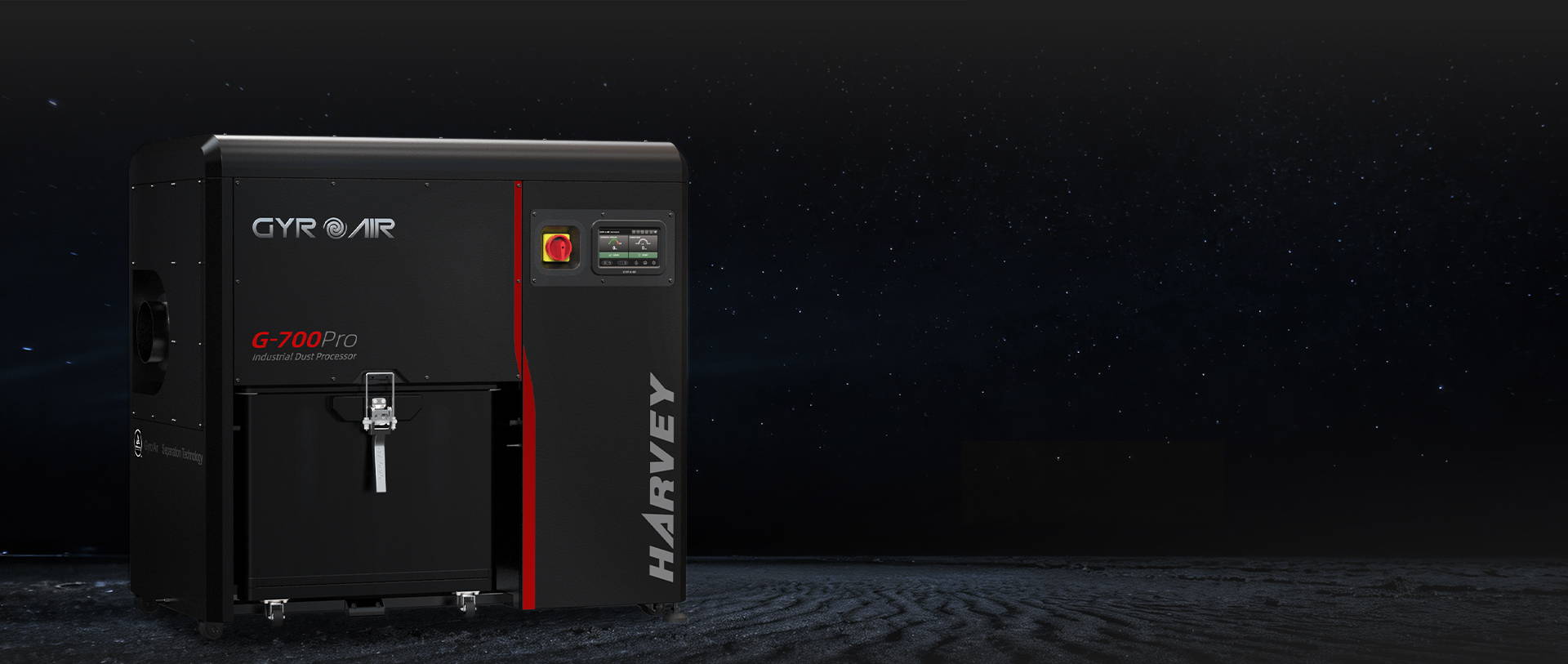

System Overview:
Brand: Harvey Woodworking

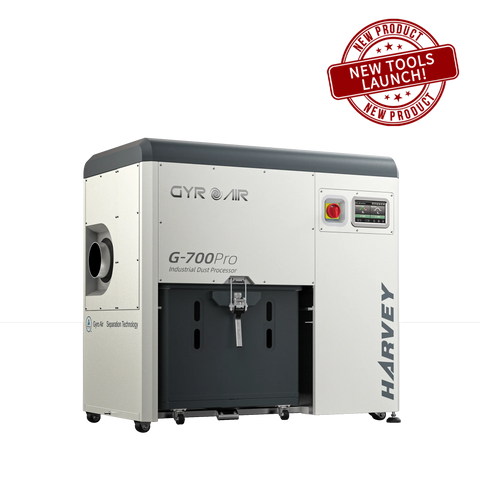

Product: GYRO AIR G-700 Pro Industrial Dust Processor
Type: Industrial wood dust collection and air filtration system
Design: Advanced Axial Centrifugation Technology (GYRO AIR®) with upgraded 3HP motor
Application: Professional dust collection for woodworking shops with multiple machines

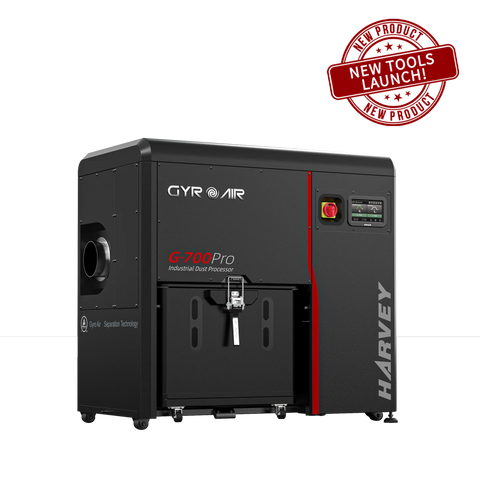

Available Colors: Lunar White, Nebula Black
Product Features and Benefits:
• Axial Centrifugation: Spins air/dust stream at high speeds generating powerful centrifugal force for superior dust separation
• Pre-Filter Separation: Majority of dust particles captured before reaching filters using dual-stage separation
• Consistent Performance: Airflow and static pressure remain stable during extended operation
• Filter Longevity: Significantly reduced filter cleaning and maintenance due to pre-separation
• Air Quality: Superior emission cleanliness exceeding industry standards
• Maximum Air Flow: 1235 CFM | 2098 m³/h
• Maximum Static Pressure: 19.25 inches of water | 4890 Pa
• Actual Airflow @ 6 inch hose: 750 CFM | 1275 m³/h
• Variable Speed Control: Adjustable frequency for customized airflow to match your needs
• Energy Efficiency: Aerodynamically optimized design for maximum efficiency
• Motor Power: 3 HP industrial-grade motor
• Variable Frequency Drive: Industrial VFD for 24/7 applications
• Smart Control Panel: Digital display with icons for power, speed, and dust cleaning modes
• Remote Control: Wireless remote control included for convenient operation
• Dust-Full Monitor: Built-in intelligent system with alert when dust bin is full
• Pressure Gauge: Monitors system performance and detects blockages
• Smart Controls: Intuitive control panel that works with you for smarter operation
• Filter Surface Area: 68 sq ft
• Filter Performance: Large filter surface reduces back pressure for consistent suction
• Manual Filter Cleaning: Yes, via cleaning handle and knob system
• Less Frequent Cleaning: Pre-separation technology extends time between filter maintenance
• Main Dust Bin Capacity: 33.8 gallons | 128 liters
• Fine Dust Collection Box: 1.6 gallons | 6 liters
• Easy Access: Roll-out dust bins for easy emptying
• Disposal Bags: Compatible with disposable liners for clean chip removal
• Clean-up Design: Designed so clean-up doesn’t break your workflow
• Inlet Type: Side-mounted inlet (fixed position)
• Main Inlet: 6 inch
• Adapter Inlets: 4 inch x 2
• Flexible Hose Options: 2 inch, 4 inch, and 6 inch compatible
• Industrial Build: Heavy-duty construction for demanding shop conditions
• Enclosed Housing: Fully enclosed design for professional workshop environments
• Heavy-Duty Casters: Premium wheels for easy mobility
• Adjustable Feet: Support legs with adjustment handles for stable positioning
• Premium Finish: Available in Lunar White and Nebula Black finishes

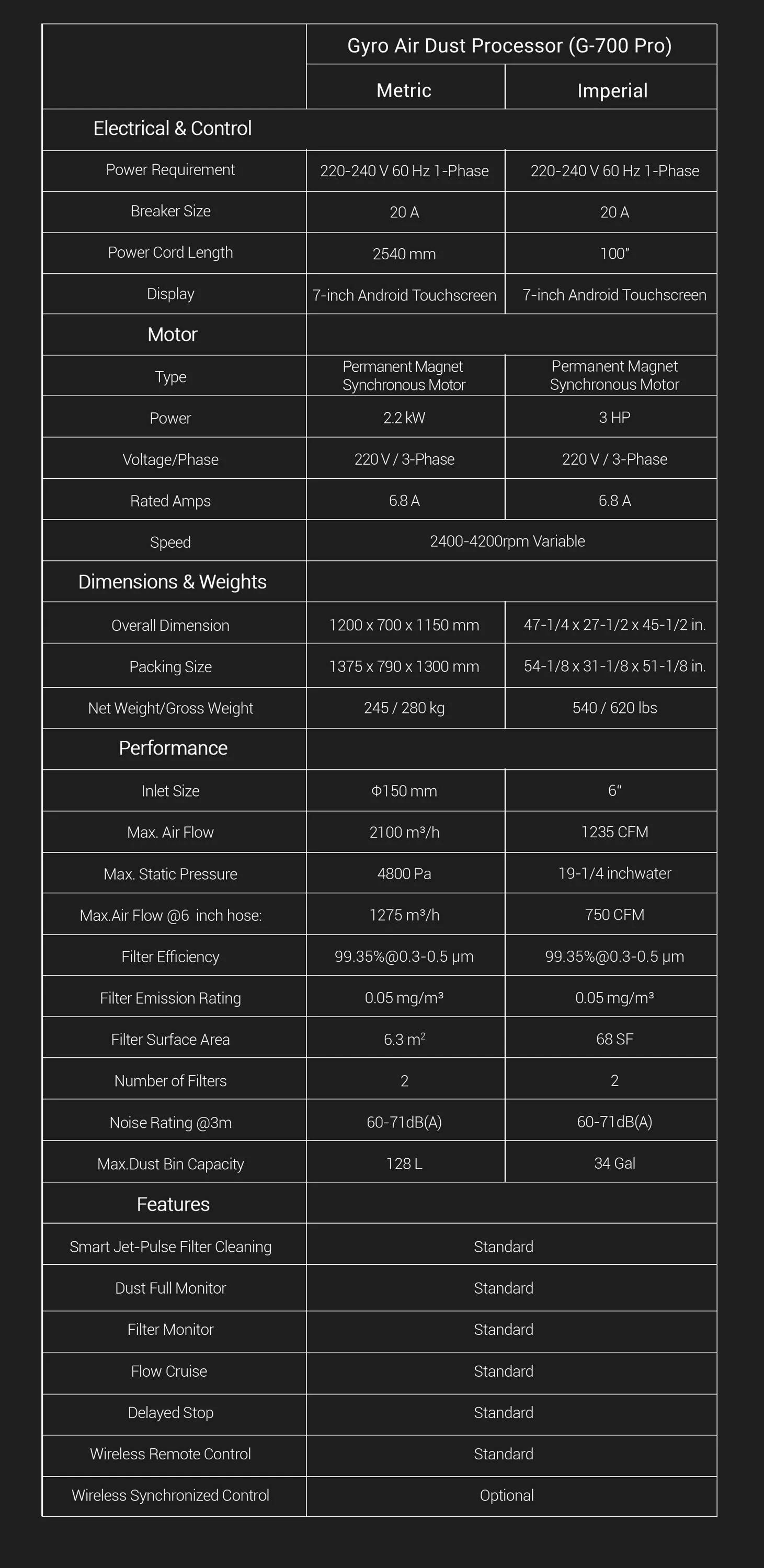

Technical Specifications
• Motor Power: 3 HP
• Max Air Flow: 1235 CFM | 2098 m³/h
• Max Static Pressure: 19.25 inches of water | 4890 Pa
• Actual Airflow @ 6 inch hose: 750 CFM | 1275 m³/h
• Variable Speed: Yes
• Filter Surface Area: 68 sq ft
• Manual Filter Cleaning: Yes
• Main Dust Bin Capacity: 33.8 gallons | 128 liters
• Fine Dust Collection Box: 1.6 gallons | 6 liters
• Inlet Position: Side-mounted (fixed)
• Main Inlet Size: 6 inch
• Adapter Inlet Size: 4 inch x 2
• Compatible Hose Sizes: 2 inch, 4 inch, 6 inch
• Overall Dimensions: 47-1/4 x 27-1/2 x 45-1/2 inch
• Net Weight: 540 lbs | 245 kg
• Shipping: Ships in cardboard carton
• GYRO AIR Technology: Yes
• 3 HP Motor: Yes
• Variable Speed Control: Yes
• Digital Control Panel: Yes
• Intelligent Dust-Full Monitoring: Yes
• Pressure Gauge: Yes
• Remote Control: Yes
• Manual Filter Cleaning: Yes
Safety Features and Requirements:
• Manual Review: Read and understand owner’s manual and all labels before operation
• Grounding: Machine must be properly grounded to reduce risk of electric shock
• Environment: Do not expose to water or moisture; do not use outdoors
• Flammables: Do not use near flammable liquids or volatile gases
• Clothing: Avoid loose clothing, gloves, neckties, or jewelry that could be caught
• Eye Protection: Always wear safety glasses or face shield during operation
• Hearing Protection: Wear ear protection if noise seems excessive
• Clean Environment: Remove any tools or objects that could be sucked into the machine
• Intended Use: Do not use as vacuum cleaner; avoid stones, nails that may cause sparks
• Fire Suppression: Only operate in locations with fire suppression system or fire extinguisher nearby
• Regular Cleaning: Empty collection bins regularly to avoid fine dust buildup fire risk
• Static Electricity: Ground all plastic dust lines with grounding wire to prevent sparks
• Hazardous Dust: Always wear NIOSH-approved respirator; some wood dust may cause cancer or respiratory damage
• Dust Allergies: Know what type of wood dust you will be exposed to for allergy awareness
• Impeller Hazards: Never place hands or tools near open inlet during operation
The G-700 Pro is designed only for wood chips and dust collection. Do NOT collect: liquids, poisonous gases, explosive materials, viscous substances, or other potentially dangerous substances.
Installation Requirements:
• Wall Clearance: Place with adequate clearance from walls for proper motor heat dissipation
• Floor Space: Requires approximately 47 x 28 inches of floor space
• Power Supply: 220VAC required for 3HP motor
• Professional Installation: Have a qualified electrician verify proper outlet and grounding
• Extension Cords: Not recommended; if necessary, use appropriate gauge wire
Machine must be grounded. Connect plastic hose grounding wires to set screws on dust port. Ensure each connected machine is continuously grounded to the grounding terminal in your electric service panel. WARNING: Improper grounding can result in electric shock.
Maintenance Schedule:
• Dust Bin: Check and empty main dust bin as needed or at end of each day
• Fine Dust Box: Check fine dust collection box, especially when using sanders or CNC machines
• Filter Cleaning: Turn cleaning handles to clean filter regularly
• Deep Clean: Perform thorough filter cleaning periodically
• Bolts and Fasteners: Regularly inspect for loose bolts or fasteners
• Hoses: Check for blockages, splits, cracks, and loose connections
• Motor: Clean motor fan with compressed air to restore normal air circulation
Warranty Information:
• Warranty Period: Limited warranty from date of purchase
• Coverage: Defective parts repaired or replaced at no additional charge
• Normal wear, tear, and consumable parts
• Abuse, misuse, or neglect of the product
• Lack of proper care and maintenance
• Use of non-genuine Harvey parts and/or components
• Unauthorized repairs, alterations, or modifications
• Any force majeure, fire, or explosion
Package Contents:
• Machine (main unit)
• Flexible hose
• Dust extractor adaptor
• Tool set
• Wireless remote control
Compatible Accessories:
Dust Bin Disposable Liners: Disposable bags for easy chip removal
Replacement Filters: Available from Harvey
Frequently Asked Questions:
The GYRO AIR G-700 Pro Industrial Dust Processor features an upgraded 3HP motor (compared to 2HP in the standard G-700), delivering 1235 CFM maximum airflow versus 1110 CFM. It has 19.25 inches of static pressure compared to 18.5 inches. The Pro model also features an updated smart control panel with digital display, larger 33.8-gallon main dust bin, and premium styling options in Lunar White and Nebula Black.
GYRO AIR is Harvey’s patented Axial Centrifugation Technology that spins the air/dust stream at high speeds, generating powerful centrifugal force. This separates the majority of dust particles before they reach the filters, resulting in consistent airflow, minimal filter clogging, and superior air quality in your shop.
Yes, the GYRO AIR G-700 Pro Industrial Dust Processor is specifically designed for professional woodworking environments. With its 3HP motor, industrial-grade VFD rated for 24/7 operation, and robust construction weighing 540 lbs, it’s built to handle the demands of busy commercial shops.
The GYRO AIR G-700 Pro Industrial Dust Processor is available in two premium finishes: Lunar White and Nebula Black. Both options feature the same performance specifications and are designed to complement professional workshop environments.
The GYRO AIR G-700 Pro Industrial Dust Processor requires 220VAC power to operate its 3HP motor. We recommend having a qualified electrician verify proper outlet installation and grounding before use.
The GYRO AIR G-700 Pro Industrial Dust Processor measures 47-1/4 x 27-1/2 x 45-1/2 inches. Allow adequate clearance around the machine for airflow, access to the dust bins, and filter maintenance. The side-mounted inlet requires consideration when planning your duct layout.
The GYRO AIR G-700 Pro Industrial Dust Processor accepts 2 inch, 4 inch, and 6 inch hoses. Connect 6 inch hoses directly to the main inlet. For 4 inch and 2 inch connections, use the included dust extractor adaptor.
The GYRO AIR G-700 Pro Industrial Dust Processor features variable speed control via the smart control panel. Adjust the frequency to customize airflow for your specific application. Lower settings work well for lighter dust collection needs, while higher settings deliver maximum airflow for demanding operations.
The digital control panel features intuitive icons for power, speed adjustment, and dust cleaning modes. The interface is designed to work with you for smarter, more efficient operation of your dust collection system.
Yes, the GYRO AIR G-700 Pro Industrial Dust Processor includes a wireless remote control for convenient operation from anywhere in your shop. This remote freedom allows you to start and stop the machine without walking to the control panel.
The GYRO AIR G-700 Pro Industrial Dust Processor operates at 61 to 72 dB(A), depending on the speed setting. This is comparable to normal conversation level, making it significantly quieter than traditional dust collectors. The low noise is achieved through the aerodynamically optimized design and fully enclosed housing.
Yes, the GYRO AIR G-700 Pro Industrial Dust Processor is designed to collect dust from one or two machines at the same time. This can be accomplished by connecting it to multiple machines using blast gates to control which machine is active.
The GYRO AIR G-700 Pro Industrial Dust Processor features a built-in intelligent Dust-Full Monitor that alerts you when the dust bin needs to be emptied. The system also includes a pressure gauge that monitors performance and can help detect blockages in your ducting system.
Always wear safety glasses or a face shield during operation. Wear ear protection if noise seems excessive, and always use a NIOSH-approved respirator as some wood dust may cause respiratory damage. Never place hands or tools near the open inlet while the machine is running. Remove any loose tools or objects from the area that could be sucked into the machine, and only operate in locations with a fire suppression system or fire extinguisher nearby.
The main 33.8-gallon dust bin should be checked daily and emptied as needed. The 1.6-gallon fine dust collection box fills faster when using sanders, drum sanders, or CNC machines, so check it more frequently during these operations.
Use the manual filter cleaning system by turning the cleaning handles. The 68 sq ft filter surface area and GYRO AIR pre-separation technology mean less frequent cleaning is required compared to traditional dust collectors.
Both share the same 3HP motor, 1235 CFM max airflow, and GYRO AIR technology. The GYRO AIR G-800 Pro Industrial Dust Processor Pro offers 27% more filter surface area (86 sq ft vs 68 sq ft), a larger fine dust box (4 gallons vs 1.6 gallons), and a vertical adjustable inlet option for overhead ducting. The GYRO AIR G-800 Pro Industrial Dust Processor is larger, heavier, and designed for maximum performance in demanding environments. The GYRO AIR G-700 Pro Industrial Dust Processor is the more compact option while still delivering professional-grade performance.
Traditional cyclone collectors rely on gravity alone, achieving only about 60% separation efficiency before the filter. The GYRO AIR G-700 Pro Industrial Dust Processor uses GYRO AIR centrifugal technology for significantly higher pre-filter separation, resulting in longer filter life, more consistent suction, and cleaner air emission.
Yes. The GYRO AIR G-700 Pro Industrial Dust Processor’s aerodynamic optimization and enclosed housing design result in significantly quieter operation compared to traditional dust collectors. Users report being able to carry on normal conversations while the machine is running.
While the GYRO AIR G-700 Pro Industrial Dust Processor has a maximum airflow rating of 1235 CFM, the actual airflow delivered at the tool through a 6-inch hose is approximately 750 CFM (1275 m³/h). This real-world measurement accounts for system resistance from filters and ducting.
The GYRO AIR system spins the air/dust mixture at speeds up to 4,000 RPM, generating centrifugal force over 100 times gravity. This powerful force separates 99.9% of dust particles before they reach the filters, which means less filter clogging, more consistent airflow, and significantly reduced maintenance compared to traditional dust collectors.
The GYRO AIR G-700 Pro Industrial Dust Processor achieves an air emission cleanliness level of 0.05 mg/cubic meter, which is 50% better than the European Standard of 0.1 mg/cubic meter. This means exceptionally clean air output from the filtration system.
No. The GYRO AIR G-700 Pro Industrial Dust Processor is designed only for wood chips and dust collection. Do NOT use it to collect liquids, poisonous gases, explosive materials, viscous substances, or any other potentially dangerous materials.
Grounding is critical for electrical safety and static electricity prevention. Plastic dust hoses generate static electricity as dust passes through, which can cause sparks and potentially fire. Ground all plastic dust lines by connecting the grounding wire to the set screws on the dust port.
The GYRO AIR G-700 Pro Industrial Dust Processor weighs 540 lbs (245 kg). Due to its weight, you will need appropriate equipment and qualified personnel to move and position the machine. Heavy-duty casters are included for mobility once installed.
The GYRO AIR G-700 Pro Industrial Dust Processor ships in a cardboard carton. Shipping is available to the lower 48 states. For other areas, contact Harvey for detailed shipping rates.
No. Do not expose the machine to water or moisture and do not use it outdoors. The GYRO AIR G-700 Pro Industrial Dust Processor is designed for indoor workshop use only.
Harvey provides a limited warranty from date of purchase covering defective parts, which will be repaired or replaced at no additional charge. The warranty does not cover normal wear and tear, consumable parts, abuse or misuse, lack of proper maintenance, use of non-genuine parts, or unauthorized modifications.
Contact Harvey Industries International at 1-888-211-0397 or email info@harveywoodworking.com. You can also submit support tickets through harveyindustriesintl.freshdesk.com/support/home.
