Gyro Air G1000

$13,900.00
Gyro Air G1000

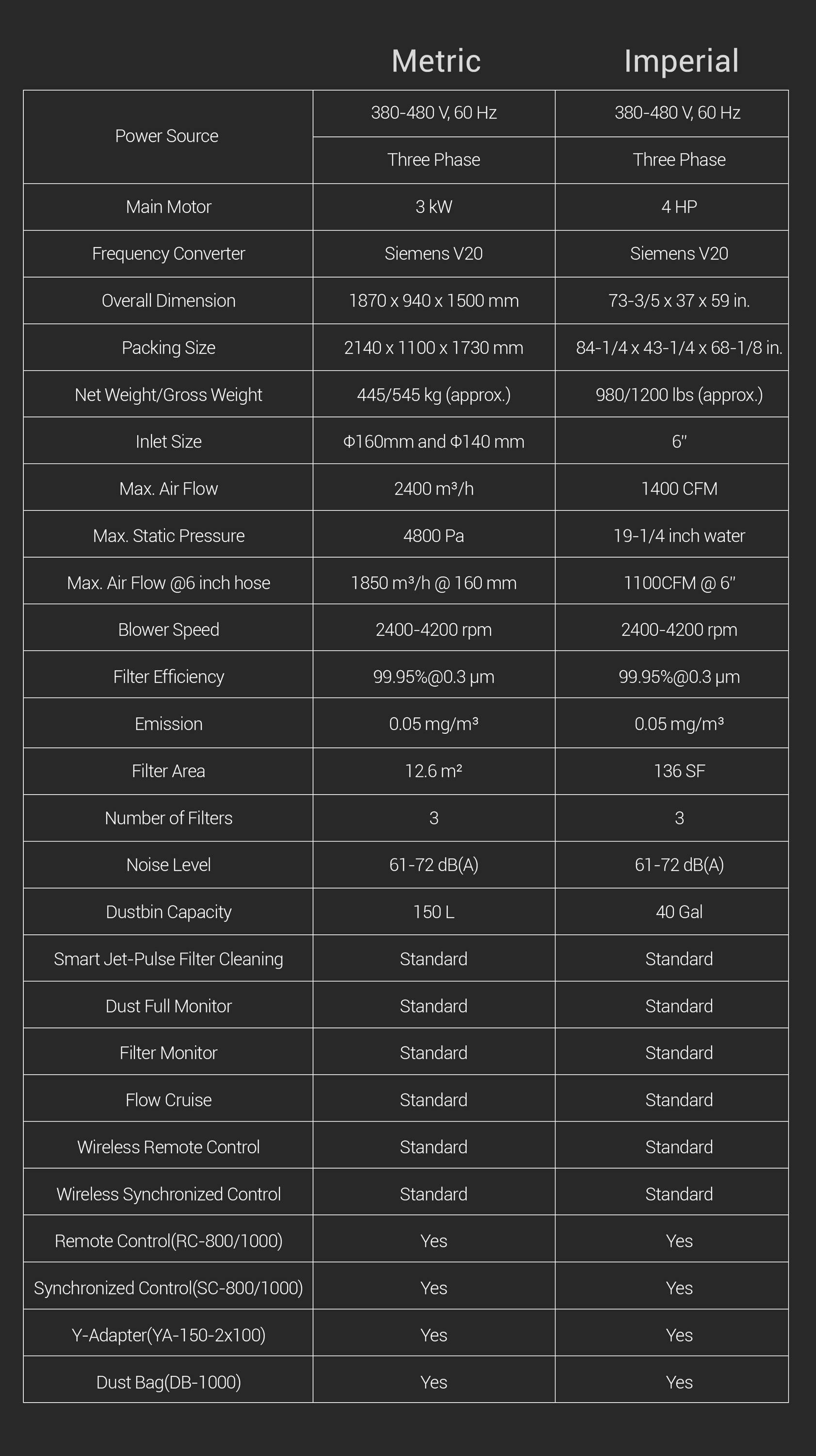

Specifications
Electrical
Power Requirement: 380-480V,3 Phase,60Hz
Breaker Size: 20 A
Inverter Type: Siemens V20
Motor
Type: TEFC Induction
Power: 4 HP
Phase: 3 Phase
Rated Amps: 6.4A
Speed: 2400-4200 rpm Variable
Product Dimensions
Overall Dimension: 73-5/8x37x59 inches
Packing Size: 81-1/4x43-1/4x68-1/8 inches
Product Weight
Net Weight: 980 lbs
Gross Weight: 1200 lbs
Performance
Max Air Flow: 1600 CFM
Max. Static Pressure: 25 inchwater
Impeller Size: 14-1/8"
Main Inlet Size: 6inch
Number Of Filters: 3
Filter Emission Rating: 0.05mg/m³
Filter Efficiency: 99.95%@0.3µm (HEPA)
Filter Surface Area: 136 SQ. FT.
Noise Rating @3m: 61-72 dbA
Max. Dust Bin Capacity: 40 GAL
Smart Jet Pulse filter Cleaning:* Yes
Intelligent Dust-Full Monitoring system: Yes
Filter Monitor: Yes
Flow Cruise: Yes
Wireless Remote Control: Yes
Wireless Synchronized Control: Yes

Gyro Air G1000

$13,900.00
description

Built to meet your industrial application needs for all types of dry dust collection


Superior Effectiveness

Cleans your shop air to a level of 0.05milligrams/cubic meter exceeding European standards for cleanliness; Filter Effectiveness is 99.95% in capturing particles down to 0.3 microns in size which is HEPA levels. 99.7% of the dust particles are removed from the air flow before the filters meaning much longer run times at full CFM and Static Pressure and less load on the 3 filters means longer filter life. The G1000 is made to work with all types of dry dust and chips including metal from grinding operations, wood, rubber, plastic, grain, stone, graphite, and more.

Intelligent Control

Fully utilizing the capabilities of the Siemens frequency converter, the G1000 not only provides variable speed control to match the air flow to your requirements, but it can also manage the air flow automatically to maintain consistent air flow in changing conditions (Flow Cruise). The G1000 also has filter load monitoring and automatic filter cleaning; dust bin monitoring and a warning when the bin reaches capacity; remote control start/stop; synchronous start/stop that works when you turn on the equipment from which you are collecting (up to 4 machines!). There is also a delayed stop program which can be set to run a predetermined time in order to provide general shop air cleaning.

Simple Installation and Maintenance

With the GyroAir, there is no complicated central system duct work. This is not only more economically efficient in installation but it also eliminates the expensive problem of exhausting heated or air conditioned air to the outside. With a range of 61-72 dB(A) it runs quietly enough to be in the shop next to your workers. The filters are easily accessed and changed when necessary. Emptying the dust bin is simple and easy. The GyroAir is on casters so you can relocate it as needed.


Certifications – The GyroAir is CE certified for Health, Safety, and Environmental.


Specifications
Electrical
Power Requirement: 380-480V,3 Phase,60Hz
Breaker Size: 20 A
Inverter Type: Siemens V20
Motor
Type: TEFC Induction
Power: 4 HP
Phase: 3 Phase
Rated Amps: 6.4A
Speed: 2400-4200 rpm Variable
Product Dimensions
Overall Dimension: 73-5/8x37x59 inches
Packing Size: 81-1/4x43-1/4x68-1/8 inches
Product Weight
Net Weight: 980 lbs
Gross Weight: 1200 lbs
Performance
Max Air Flow: 1600 CFM
Max. Static Pressure: 25 inchwater
Impeller Size: 14-1/8"
Main Inlet Size: 6inch
Number Of Filters: 3
Filter Emission Rating: 0.05mg/m³
Filter Efficiency: 99.95%@0.3µm (HEPA)
Filter Surface Area: 136 SQ. FT.
Noise Rating @3m: 61-72 dbA
Max. Dust Bin Capacity: 40 GAL
Smart Jet Pulse filter Cleaning:* Yes
Intelligent Dust-Full Monitoring system: Yes
Filter Monitor: Yes
Flow Cruise: Yes
Wireless Remote Control: Yes
Wireless Synchronized Control: Yes
